As a top PCB assembler, we provide

Superior Quality

From visual inspection to X-ray inspection, we take every measure to maintain the quality of PCB assembly. We follow a rigorous testing process to keep printed circuit board assembly defect-free and fully functional without any issues.

PCB Turnkey Assemblies

With over 15 years of experience in circuit board assembly services, we provide fast and reliable turnkey PCB assemblies. We ensure consistent results while dealing with several suppliers by making the entire PCB assembly process smooth and seamless.

Smart Production

As an ISO 9001:2015 certified USA-based PCB assembler, we provide contract PCB assembly service with capabilities to assemble PCB components like BGA, PLCC, QFB, QFN, UBGA, and POP specific to clients.

PCB Assembly Services

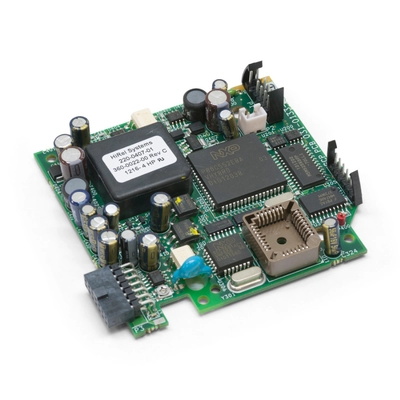

Prototype PCB Assembly

Our PCB assembly services are meant to detect any functional and operational errors at the inception stage itself. We test the pre-production quality and check the design early on to save time and cost overruns in the long run. We believe that this is the ideal way before going into mass production. Many companies agree with us and come to us before the final production run.

Box Build PCB Assembly

Our specialized Box build assembly services involve fabrication of enclosures, installation of cables or wire harnesses, and installation of components and sub-assemblies. We offer end-to-end PCB assembly services starting from product assembly, system level assembly, complete product testing & inspection, packing to shipping. We closely collaborate with our clients for maintaining product quality and flawless end-result.

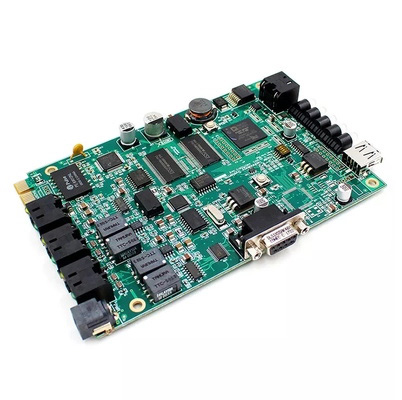

Turnkey PCB Assembly

We serve many customers across the USA with both partial turnkey and full turnkey PCBA services. We are happy to help our clients right from project inception as well as jump in to complete the project through our turnkey PCB services. Even if you are unsure of how to go about it, our procurement specialists would be happy to guide you. Our experts do everything right from the preparation of PCBs, procurement of raw materials & components, quality testing & inspection, and final assembly ready for dispatch.

Prototype PCB Assembly

Our PCB assembly services are meant to detect any functional and operational errors at the inception stage itself. We test the pre-production quality and check the design early on to save time and cost overruns in the long run. We believe that this is the ideal way before going into mass production. Many companies agree with us and come to us before the final production run.

Cable Harness PCB Assembly

Whether you need a flat ribbon cable or wire harnesses or discrete wire assemblies, we guarantee you all PCB assemblies that are custom-built for you. We are specialized in assembling simple to complex wire cables and wiring harness assembly services. We offer full-service & customized Cable and Wire Harness Assembly services for automotive systems, computers, electronics, HVAC controls, and more to transmit signals or electric powers.

Lead Free PCB Assembly

We produce high-quality lead-free printed circuit board assemblies using certain toxic-free components and board finishes. We are steadfast in our commitment to provide lead-free PCB assembly services and ensure that every printed circuit board is compliant with lead-free and RoHS PCB assembly standards. Our lead-free PCB Assembly services are much appreciated by clients who have environmental concerns and committed to building a sustainable business.

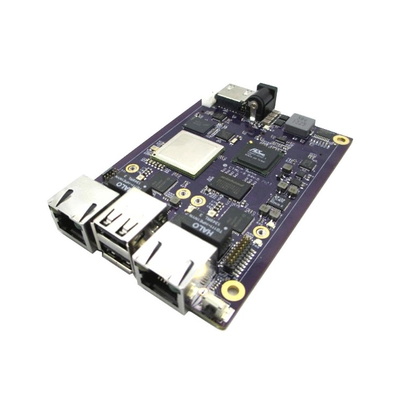

Quick Turn PCB Assembly

We have gained unparalleled technical expertise, unmatched engineering services, and state of art equipment for delivering quick turn PCB assembly at the fastest turnaround time without sacrificing quality. We have well-rounded quick turn PCB manufacturer who are committed to providing superior quality PCBs irrespective of the board volumes.

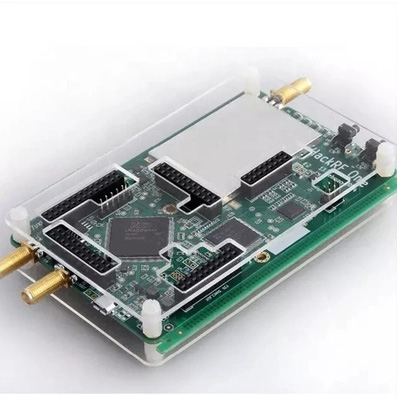

Surface Mount PCB Assembly

We work with both manual and automatic SMT assembly processes to perform single-sided, double-sided, and multilayer PCB component placement. We have capabilities to assemble BGA, QFN, SOIC, PLCC, QFB, UBGA/DSBGA, and POP based on the clients’ requirements. Our qualified and skilled personnel are committed to providing accurate and consistent components’ placement on the PCB surface.

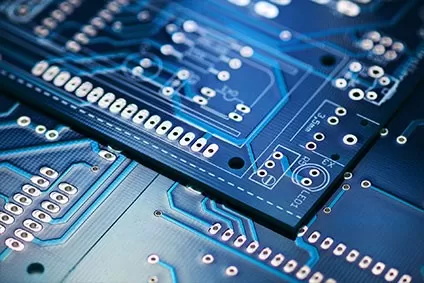

Through Hole PCB Assembly

We build durable and shock-resistant products with Through Hole mounting Technology by building stronger bonds between the circuit board and its components. We’ve invested in cutting-edge and most advanced soldering and assembly tools for better serving our diverse clientele. We are fully qualified to hand both semi-automated or fully automated through-hole PCB assembly services.

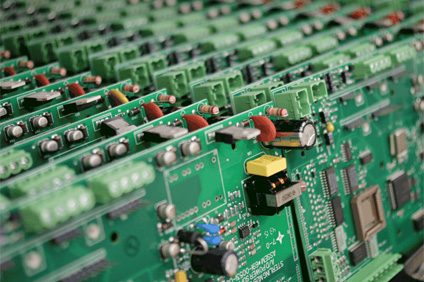

Low Volume PCB Assembly

We specialize in low volume PCB assembly with customized features. We provide complete turn-key small batch PCB assembly wherein we take care of the entire PCB assembly – fabrication, component mounting, assembly, testing, and delivery. With our skilled engineers and dedicated workforce, we are well-equipped for small batch PCB assembly that can be delivered in the shortest lead time.

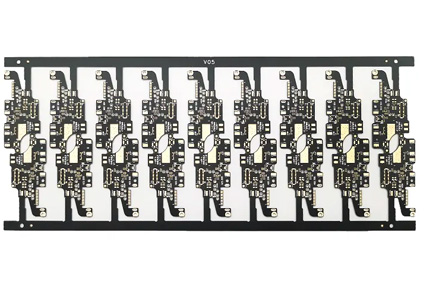

High Volume PCB Assembly

We have been leading the way for more than 15 years for high volume PCB assembly. High volume PCBA refers to circuit board assembly projects or requirements in 10,000 pieces or above. As your needs increase and look for something in higher volumes, look nowhere; QiXuan Electronics is your go-to place for reliable large volume PCB assembly services. Irrespective of the printed circuit board assembly volume required, we help you get them on time and boost their performance in the industry.

Multilayer PCB Assembly

Build modern and complex electronic devices with our Multilayer PCB Assembly services. We leverage the light-weight and high-quality layered architecture of Multilayer PCB and cater our services to all kinds of devices – smartphones, tablets, laptops, medical devices, military equipment, and wearable devices. We have the capability to handle small, medium, & large production runs and are committed to the highest quality and performance standards.

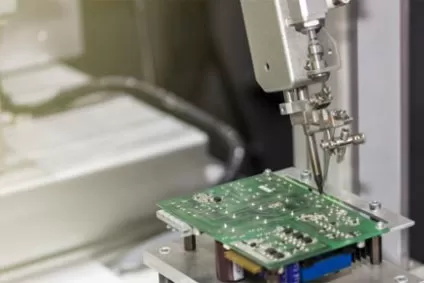

BGA PCB Assembly

We are a one-stop solution for varied BGA PCB assembly services like BGA component removal, BGA replacement, reflow soldering, site preparation, solder paste application, BGA rework & reballing services, circuit pattern design changes at BGA sites, repair of lifted/missing BGA pads, repair of solder mask at the BGA sites. We have extensive experience and knowledge in mounting high-performance devices using Ball Grid Array.

PCB Assembly Rework

We are one of the leading circuit board assemblers providing PCB assembly rework and repair service through cutting-edge tools and technologies. We ensure effective resoldering or desoldering of certain surface-mounted components on the printed circuit boards. With the increase in lead-free requirements, the PCB repair process has become even more complex but we have trained personnel to work on lead-free assembly, rework, and inspection.

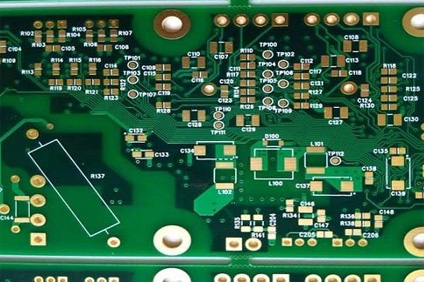

Mastering Mixed PCB Assembly

We render perfect Mastering Mix PCB services for the applications that require the combination of both surface mount technology and through-hole technologies. For mastering mixed PCB assembly processing, we use design for manufacturability (DFM) progressively. Our strategy lies in focusing on the layout stages to optimize the process upfront and reduce any overheads early on.

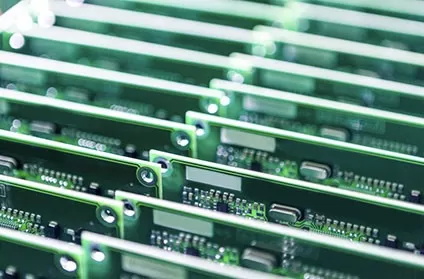

Consignment PCB Assembly

We offer both fully consigned and partial consigned PCB services at highly competitive costs. We also provide a certain degree of customer flexibility in the PCB prototyping and circuit boards assembly process. Our consignment PCB assembly services are guaranteed to deliver circuit boards of top-quality as we deploy advanced testing techniques.

Printed Circuit Board Assembly Capabilities

PCB Assembly Capabilities

Assembly Types Single sided placement (SMT/Thru-hole) Single & double sided placement (SMT/Thru-hole)
PCB Layer 2,4,6 layers 1 - 20 layers
Thickness 0.8mm - 1.6mm 0.4mm - 2.0mm
Dimension Single PCB Size: 10x10mm - 570x470mm PCB Panel Size: 10x10mm - 250x250mm Single PCB Size: 70x70mm - 510x460mm PCB Panel Size: 70x70mm - 250x250mm
Order Volume 2 - 50 pcs 2 - 80000 pcs
Surface Finish Limited by specific options No limit
PCB Color Limited by specific options No limit
Delivery Format Single PCB, Panel with mouse bites Single PCB, Panel with mouse bites,
Panel with V-cut
Layer Stackup Standard stack-up only, special
stack-up is not supported 		All stack-up
Edge Rails Not necessary Necessary
Fiducials Not necessary Necessary
Minimum Package 0402 0201
Minimum IC Pin Spacing 0.4mm 0.35mm
Minimum BGA Spacing 0.5mm 0.5mm
Reflow temperature 255+/-5 °C （not adjustable) 240+/-5 °C
SPI No Yes
AOI Yes Yes
Visual Inspection Yes Yes
X-ray Inspection Yes Yes
Build time 1 - 3 days ≥ 4 days

PCB Specs for Economic PCB Assembly

Layer Thickness(mm) Color Surface Finish Qty(pcs)
2L 0.8 Green HASL- Leaded/Lead free 2-30
1 Green/Black HASL- Leaded/Lead free 2-30
1.2 Green/Black HASL- Leaded/Lead free 2-30
1.6 Green / Black(ENIG not supported /Blue&Red&White(HASL,5-30pcs) HASL- Leaded/Lead free/ENIG 2-50
4L 1 Green HASL- Leaded/Lead free 2-30
1.2 Green HASL- Leaded/Lead free 2-50
1.6 Green HASL- Leaded/Lead free/ENIG 2-50
6L 1.6 Green ENIG 2-30

– 01

PCB Assembly Technologies

There are three methods to construct a printed circuit board assembly.

1. Surface Mount Technology (SMT)

SMT is the process of mounting the electrical components directly on the PCB surface. Leads are soldered on PCB surface directly instead of using hole mounting. We are known for our accuracy and follow the right SMT techniques to yield best-in-class SMT PCB assembly for electronic devices of all sizes. SMT is beneficial where there is limited space.

2. Through Hole Technique

We provide end-to-end Through-hole assembly services from prototype stage to production. We adhere to international standards and our services comprise both manual techniques for handling complex assemblies and automated techniques for small-volume production. THT provides strength to the components using the state-of-art wave soldering method.

3. Mixed Technology

We render mixed assembly services with Surface Mount Technology (SMT) performed first followed by Through-Hole-Technique (THT). We ease the process in mixed assembly technology by selecting the optimal blend of layout and raw materials.

– 02

PCB Assembly Technologies

We maintain product quality consistency and conduct regular upgrades to stay current on the latest tools and machinery. Our customer retention rate is high and the in-warranty rejection rate for any sort of assembly defects has been below 0.7%.

We perform a series of extensive tests and inspection processes on our builds to ensure the highest quality standards.

  1. Flying Probe Testing: We use it for low-volume and prototype circuit boards due to its ease of use in programming to validate line setup without additional cost and time. Our qualified testing team provides you high-fault coverage benefits in a quick turnaround time.
  2. ICT Testing: We use it on mature products for detecting parametric failures, design-related faults, and component failures. ICT Testing takes lesser time to perform when compared to Flying Probe Testing.
  3. Functional Testing: We perform this at the last stage of manufacturing on the finished products before they are shipped. We validate the PCB behavior, its functionality, features to keep it defect-free.

– 03

PThe Dos & Don’ts while selecting PCB Assembler

Dos

  • Check company’s location
  • Check their quality work
  • Ask about their work experience
  • Check previous customer review
  • Select a reliable PCB assembly company

Don’ts

  • Don’t forget to compare prices
  • Don’t just focus on price
  • Don’t forget to ask about their full assembly process
  • Don’t forget to ask about their testing service
  • Don’t limit your scope

– 04

Multi-sector PCB Assembly Services

We assure end-to-end PCB assembly services to numerous industries. Since these industries are so diverse that they do not common solutions, we also provide custom PCB services focusing on their requirements and specifications.

  • Aerospace
  • Medical/Dental
  • Commercial
  • Military Applications
  • Telecommunications
  • Renewable Energy
  • Kiosk
  • Guitar Pedalboard

Global supply of components

We have partnered with the leading electronic component suppliers to ensure that parts for your PCB assembly are readily available at a competitive cost and in our facility when needed.

Our responsive supply chain solutions are optimized for agility and flexibility to ensure that we are ready when your PCB assembly requirements change.

With the ultimate goal of transparency, we encourage open communication with our customers and suppliers in order to create mutual understanding and trust in this ever-changing global market.

Why QiXuan?
Why QiXuan?

NDA Contract

QiXuan can sign NDA with your company. We understand it’s important to keep confidential and trade secret information for our customers.

Why QiXuan?

Advanced Equipment

Panasonic & Yamaha automatic high-speed precision placement machines, German ERSA vacuum reflow soldering & Selective wave soldering.

Why QiXuan?

Original Parts Sourcing

Electronic components from big trader or original manufacturers. Distributors such as Avnet, Arrow, Master, Digi Key, Mouser and so on.

Why QiXuan?

Quality Control

99.9% pass rate of mass production. Implement of IPC-A-610E CLASS II and CLASS III.

Why QiXuan?

Professional Team

Easy communication, fast response, offer cost-effective solution for you.

Why QiXuan?

Free Engineering Technology Support

QiXuan can offer free support when you meet some engineering issue.

Why QiXuan?

DFM Services

Your circuit boards will be more practical and cost effective after our engineers work with you.

Why QiXuan?

Certification

ISO9001, ISO13485, IATF16949 passed and implement IPC-A-610E standard.

Why QiXuan?

Free Sample Fee

Sample fee can be refunded after mass production. No set-up charge, no stencil fee.

PCBA FACTORY INFO

QiXuan Group is a comprehensive PCB solution service provider that offers both PCBA and PCB fabrication services. We specialize in surface mount technology (SMT) and provide turnkey solutions from prototype to production. With over 18 years of experience in PCB assembly, our experienced team works closely with clients throughout the entire process to ensure a successful product launch. We are proud to hold ISO 9001, ISO 14001, ISO 13485, and TS16949 certifications, demonstrating our commitment to delivering high-quality, cost-effective manufacturing solutions with superior customer service.

Learn More

Products Show

QUALITY ASSURANCE

FAQs

Printed Circuit Board Assembly is the process of soldering electronic components onto boards. They can be installed either using surface mount technology (SMT) or through-hole technology. You can use both also.

We can mechanically connect varied electronic components by using different conductive pathways, traces, and tracks. It also includes different components to be etched from laminated copper sheets and then put onto a non-conductive substrate. Finally, the component leads are attached to the PCB layout with soft metal soldering.

PCB assembly services have become indispensable with the surge in the consumer electronics like laptops, gaming consoles, mobile phones, televisions, etc. These devices need electrical components which are assembled using a PCB. One needs efficient and precise PCB assembly services for their electronics to work as anticipated.

We are one of the leading PCBA electronics companies in the China offering our customers a full range of assembly services. We focus primarily on the fabrication and assembly services of PCB prototypes. QiXuan has expertise in the assembly of high-density and high-mix printed circuit board assembling. So, whether you need a low-mix assembly or a high-mix one, low volume prototyping, high-density products, you can rely on us.

Yes. Provided the fabricated components are of high-quality standards. We do not make any compromise on the quality. So, if you have procured high-quality components earlier, we can take it up.

Our standard printed circuit board assemblies are of the following specifications – FR4, 1oz copper weight, white silkscreen, 1.6mm thickness, lead-free (if required), green solder mask.

There are no minimum order quantity requirements and we can assemble even on a single board if you require.

We focus on the prototype or layout to reduce the additional cost you may encounter in the later stages. The PCB assembly price costs can also be reduced by taking care of the following elements like raw material, board thickness, copper thickness, min hole size, total hole quantity, layer counts, etc. You can see how you can optimize these to reduce the overall costs.

PCB assembler is an individual that assembles printed circuit boards (PCBs) by placing electronic components onto the board according to a specified design with the help of BOM (Bill of materials) and Gerber file.

Of course. We do partial PCB assembly for both consigned/ kitted orders and for turnkey.

The component footprint must adhere to the manufacture’s recommendations especially the pad size and mask clearance.

When you come to us for a PCB assembly quote, we provide you the pricing details of PCB assembly that include solder stencil, tooling, and assembly labor for loading the components. It also includes component pricing.

We are one of the leading PCBA electronics companies in the China offering our customers a full range of assembly services. We focus primarily on the fabrication and assembly services of PCB prototypes. QiXuan has expertise in the assembly of high-density and high-mix printed circuit board assembling. So, whether you need a low-mix assembly or a high-mix one, low volume prototyping, high-density products, you can rely on us.

We have been certified to ISO 9001:2015, AS9100 rev D Certified, RoHS, ITAR, and also compliant with the CHINA Department of Commerce’s Export Administration.

We deploy qualified technicians to work on your PCB who adhere to the highest standards and conform to the customer specifications. We make sure from the start to meet all the industry standards. With consistent product quality and timely upgrades, our rejection rate for assembly defects has been below 0.7%. However, if you are not satisfied with our services, you can let us know anytime. Your concerns would be addressed after a thorough review.

It depends on the size of your PCB. One board differs from the other and so does the cost. Our team would help you arrive at the best possible solution specific to your needs. Size, number of layers, board laminate type, and number of boards required have an impact on the cost.

To inquiry about printed circuit board assembly, fill up the PCB assembly quote form with required details and submit it. We will get back to you as soon as possible. You can also send your PCB assembly requirements via email at sales@qixuansc.cn or call us at +86 0755 29169886.

When choosing a PCB assembly service company, one should consider the experience, quality control process, lead time, and pricing. It’s also important to ensure that they have the necessary certifications and can handle the specific PCB assembly requirements of your project.
